At 4ManPro^® (Elements For Manufacturing Processes) una Hann Kuen Machinery & Hardware, Co., Ltd. BRANCH OFFICE, we have the widest line of line heads for the most common applications within the industry.

Likewise, we also have the development of heads manufactured according to customer specifications for specialized applications and very demanding production levels, being fixed-type elements to meet the specific specifications of each project.

Within these product lines we have the D2 SERIES of Multiple Heads for drilling or tapping applications, where up to a maximum of 4 spindles are required.

Below we present the elements that make up this series.

ELEMENTS

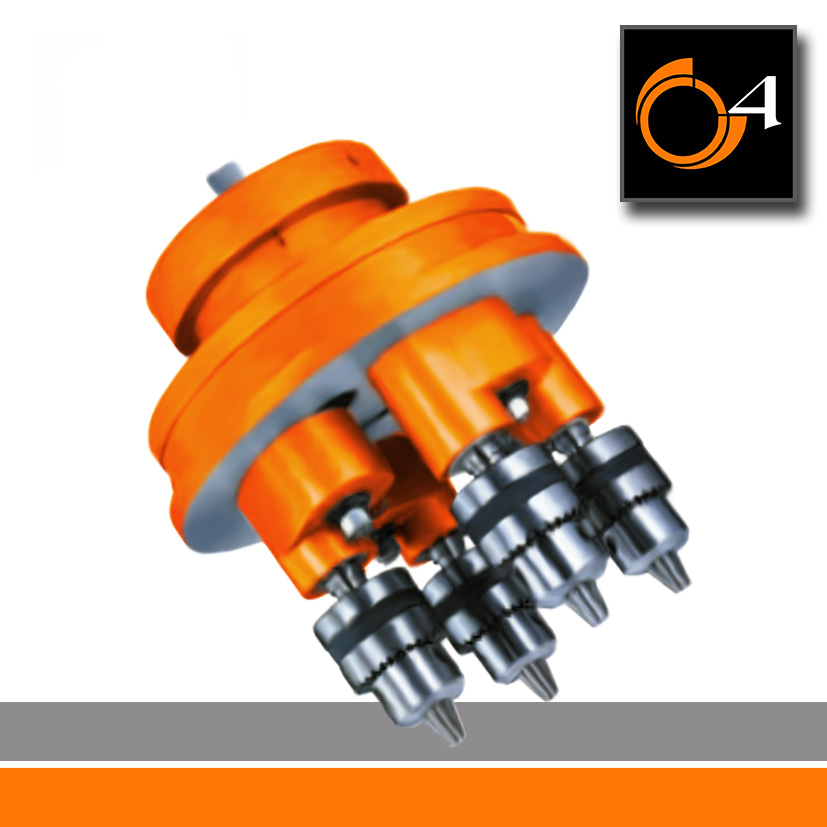

• D-177 (D-192)
  • NOZZLE TYPE:
    • C-9.
  • MAXIMUM DISTANCE BETWEEN CENTERS:
    • 177.00 mm.
  • MINIMUM DISTANCE BETWEEN CENTERS:
    • 37.00 mm.
  • SPEED RATIO:
    • 1 : 3.
  • MAXIMUM DRILLING CAPACITY:
    • Ø9.
  • MAXIMUM TAPPING CAPACITY:
    • M8.
  • SPINDLE TIPS NUMBER:
    • 2 ~ 4.

• D-198
  • NOZZLE TYPE:
    • C-12.
  • MAXIMUM DISTANCE BETWEEN CENTERS:
    • 198.00 mm.
  • MINIMUM DISTANCE BETWEEN CENTERS:
    • 45.00 mm.
  • SPEED RATIO:
    • 1 : 2.90.
  • MAXIMUM DRILLING CAPACITY:
    • Ø12.
  • MAXIMUM TAPPING CAPACITY:
    •  M12.
  • SPINDLE TIPS NUMBER
    • 2 ~ 4.

• D-240
  • NOZZLE TYPE:
    • C-12.
  • MAXIMUM DISTANCE BETWEEN CENTERS:
    • 240.00mm.
  • MINIMUM DISTANCE BETWEEN CENTERS:
    • 55.00 mm.
  • SPEED RATIO:
    • 1 : 3.20.
  • MAXIMUM DRILLING CAPACITY:
    • Ø12.
  • MAXIMUM TAPPING CAPACITY:
    • M12.
  • SPINDLE TIPS NUMBER:
    • 2 ~ 4.
