The Tapping and Drilling heads manufactured by Hann Kuen Machinery & Hardware, Co., Ltd®., and marketed by 4ManPro® (Elements For Manufacturing Processes) a Hann Kuen Machinery & Hardware BRANCH OFFICE, represent an innovative solution in the manufacturing industry. high precision manufacturing.
Designed with the latest technology and a meticulous focus on quality, these heads offer exceptional performance in a variety of machining applications.
4ManPro® (Elements For Manufacturing Processes) a Hann Kuen Machinery & Hardware BRANCH OFFICE, is recognized for its commitment to excellence in the manufacturing of machining equipment, and Taping and Drilling heads are no exception. Each head is produced from premium materials and undergoes rigorous quality testing to ensure high-precision, reliable operation.
The tapping and drilling heads manufactured by Hann Kuen Machinery & Hardware, Co., Ltd®., and marketed by 4ManPro® (Elements For Manufacturing Processes) a Hann Kuen Machinery & Hardware BRANCH OFFICE, stand out for their versatility, which allows Allows operators to carry out a wide range of machining operations with a single tool.
This not only simplifies the production process, but also saves time and costs associated with constantly changing tools.
The partnership between Hann Kuen Machinery & Hardware, Co., Ltd®., and 4ManPro® (Elements For Manufacturing Processes) a Hann Kuen Machinery & Hardware BRANCH OFFICE, ensures that these heads are not only produced to the highest standards, but They are also supported by a team committed to providing exceptional service and specialized technical support. Additionally, the availability of these heads through 4ManPro® (Elements For Manufacturing Processes) a Hann Kuen Machinery & Hardware BRANCH OFFICE, facilitates their access to a wide range of manufacturing industries, providing efficient and reliable solutions to modern machining challenges.
In summary, the Tapping and Drilling heads manufactured by Hann Kuen Machinery & Hardware, Co., Ltd.), and marketed by 4ManPro® (Elements For Manufacturing Processes) a Hann Kuen Machinery & Hardware BRANCH OFFICE, constitute an outstanding option for demanding machining operations. Its combination of quality, versatility and support ensures that customers can successfully meet the most demanding production challenges while maintaining high standards of precision and efficiency.
The Solutions Designed to perform TAPPING and DRILLING PROCESSES simultaneously, which we have, are listed below:
ELEMENTS

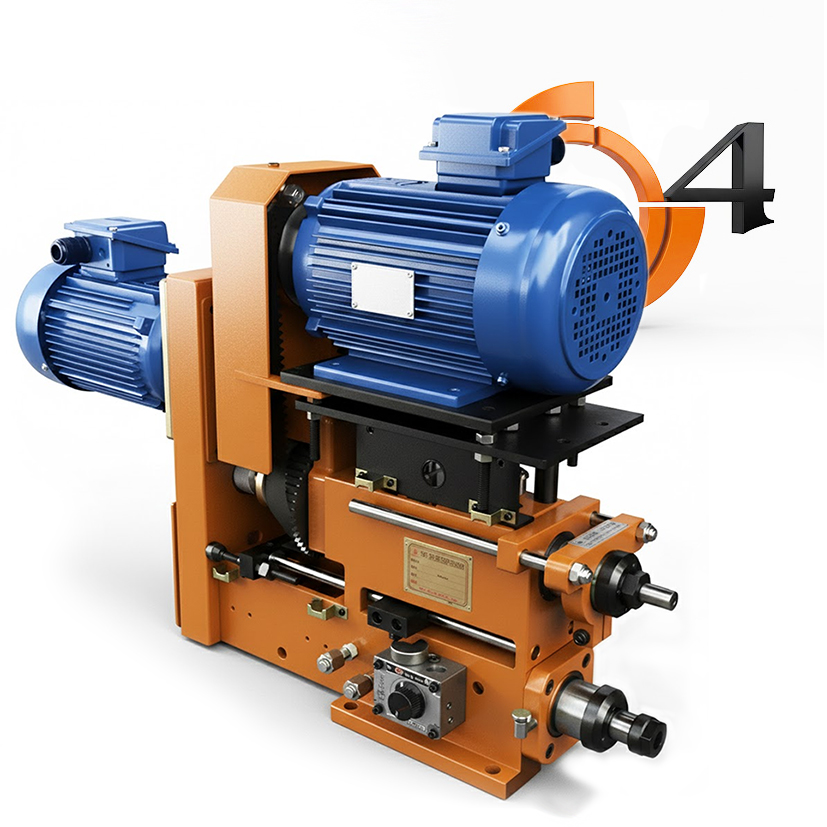

DOUBLE HEAD FOR SIMULTANEOUS TAPPING / DRILLING PROCESS
** DESCARGA DE PDF DOWNLOAD – D51N SERIES

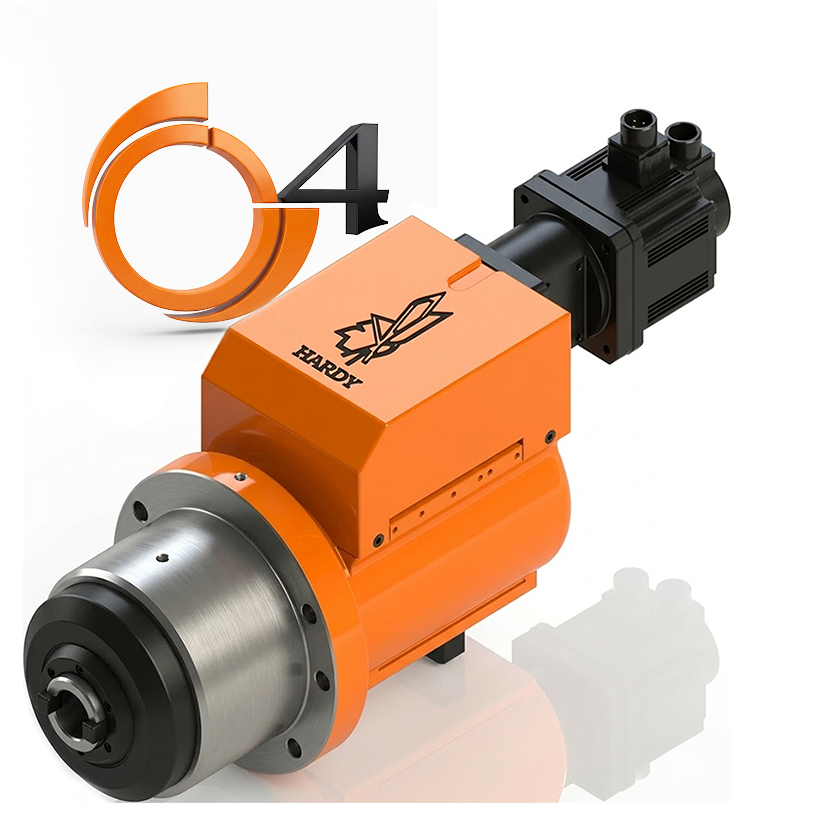

COMPACT SERVO SPINDLE FOR TAPPING / DRILLING
The spindle unit with built-in asynchronous motor of the FMD155 units is designed for drilling and tapping applications. Power is transmitted via a class C5 ball screw and servo motor for precise positioning. The design of this product provides space savings and increases your efficiency and productivity. The spindle tip accuracy is less than 0.003mm and the maximum drilling capacity is up to 30mm (S45C).
- FMD-155
- MAXIMUM SPINDLE STROKE: 120.00 mm
- DRILLING CAPACITY: 30.00 mm
- TAPPING CAPACITY: M24
- MAXIMUM SPINDLE SPEED: 2,500.00 r.p.m
- MAXIMUM SPINDLE POWER: 3.7 Kw
*** REQUIRES OIL COOLING SYSTEM
** PDF DOWNLOAD – SERIE FMD-155 SERIES

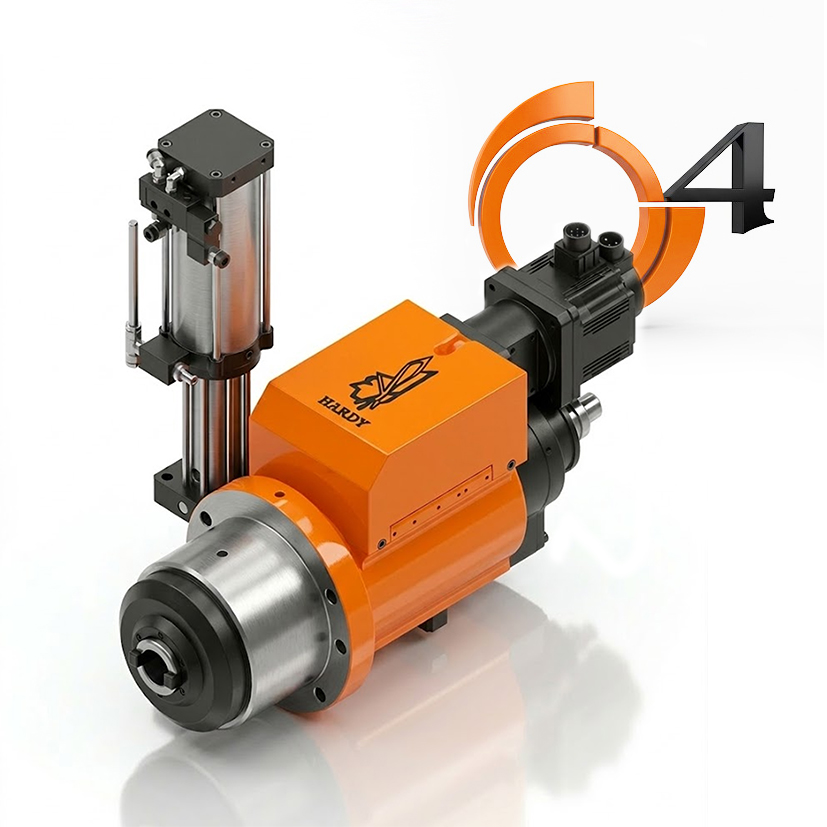

COMPACT SERVO SPINDLE FOR TAPPING / DRILLING WITH TOOL CHANGE SYSTEM
The built-in asynchronous motor spindle unit with automatic tool changer FMDC155W from 4ManPro® is designed for central coolant drilling and tapping in complex applications. Power is transmitted via a class C5 ball screw and servo motor for precise positioning. The design of this product provides space savings and increases your efficiency and productivity. The spindle tip accuracy is less than 0.003mm and the maximum drilling capacity is up to 30mm (S45C).
- FMDC-155W
- MAXIMUM STROKE: 120.00 mm
- MAXIMUM DRILLING CAPACITY: 30.00 mm
- MAXIMUM TAPPING CAPACITY: M24
- MAXIMUM SPINDLE SPEED: 2,500.00 r.p.m
- MAXIMUM POWER: 3.7 Kw
*** REQUIRES OIL COOLING SYSTEM

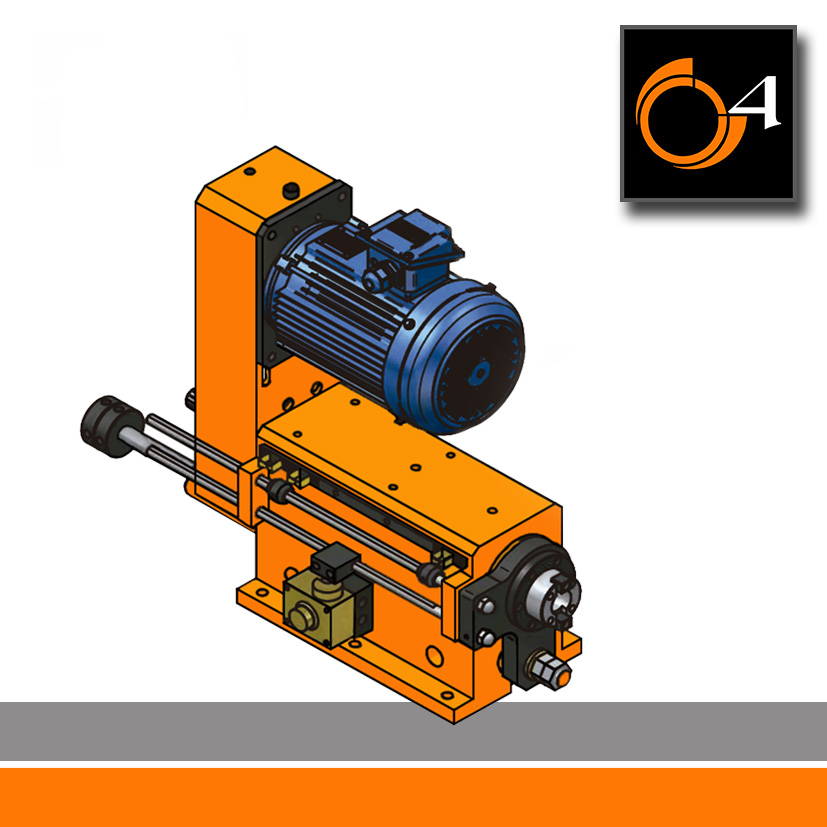

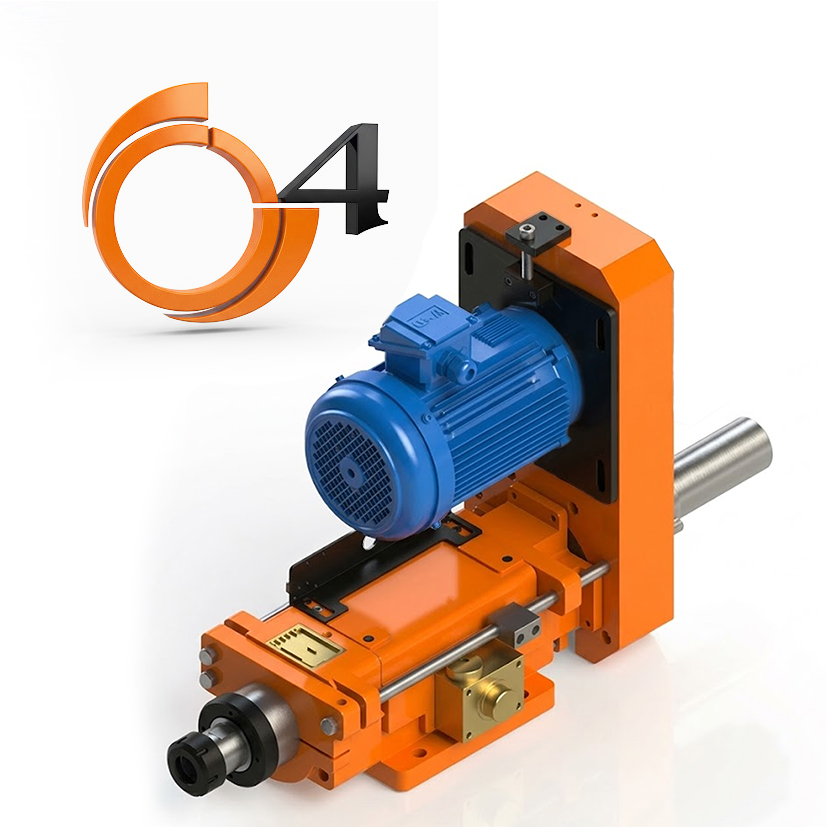

DRILLING sPINDLE HEAD WITH HYDRAULIC & PnEUMATIC mOVEMENT
The SD SERIES (03-08) DRILLING HEADS from 4ManPro® (Elements For Manufacturing Purposes) a Hann Kuen Machinery & Hardware, Co., Ltd. BRANCH OFFICE is an automated self-feeding drilling head unit with an oil damper for air supply or a hydraulic valve to control the feeding speed.
The precision of the spindle tip is strictly less than 0.003mm and the maximum drilling capacity comprises a range of Ø6.00 mm ~ 35.00 mm (S45C).
This unit allows you to perform all types of machining applications such as drilling, chamfering, reaming and countersinking.
.

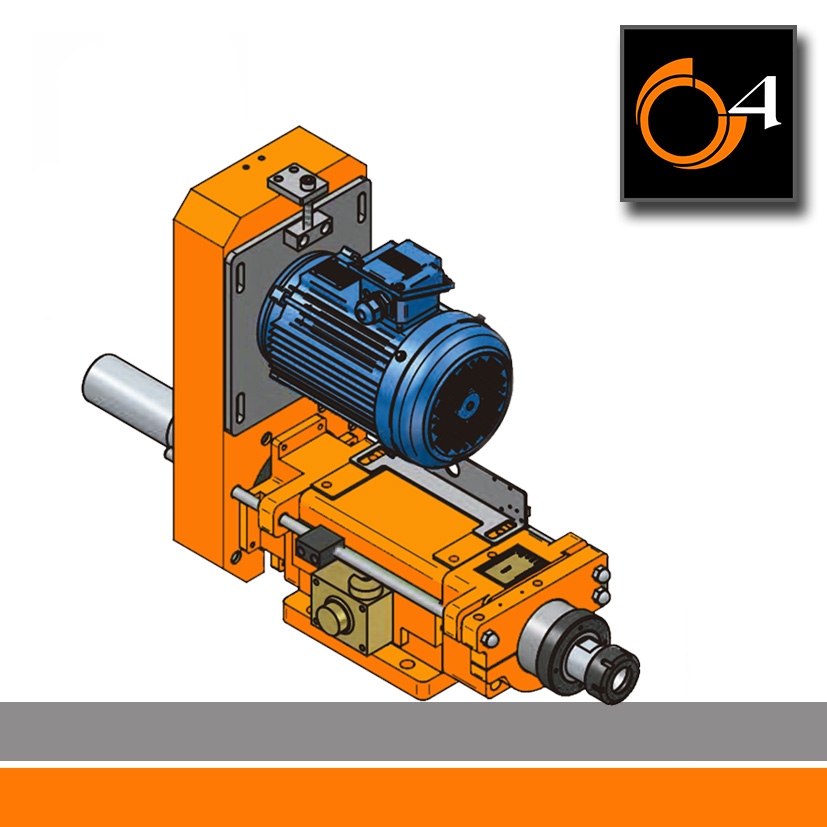

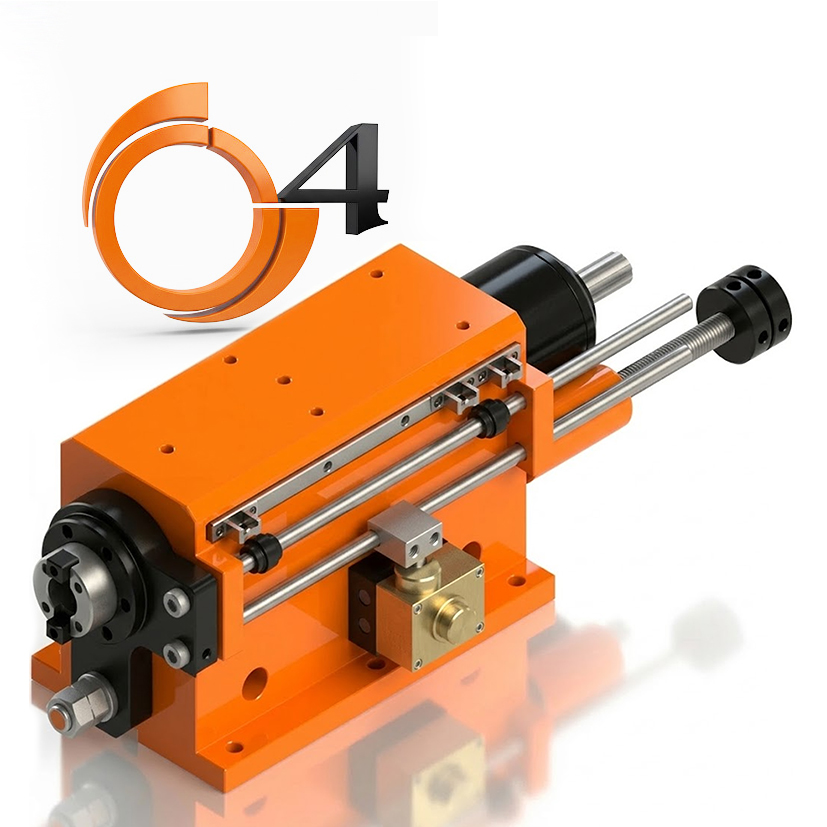

DRILLING sPINDLE HEAD WITH HYDRAULIC mOVEMENT
The SD SERIES (09-15) DRILLING HEADS from 4ManPro® (Elements For Manufacturing Purposes) a Hann Kuen Machinery & Hardware, Co., Ltd. BRANCH OFFICE is an automated self-feeding drilling head unit with an oil damper for air supply or a hydraulic valve to control the feeding speed.
The precision of the spindle tip is strictly less than 0.003mm and the maximum drilling capacity comprises a range of Ø25.00 mm ~ 50.00 mm (S45C).
This unit allows you to perform all types of machining applications such as drilling, chamfering, reaming and countersinking.
.

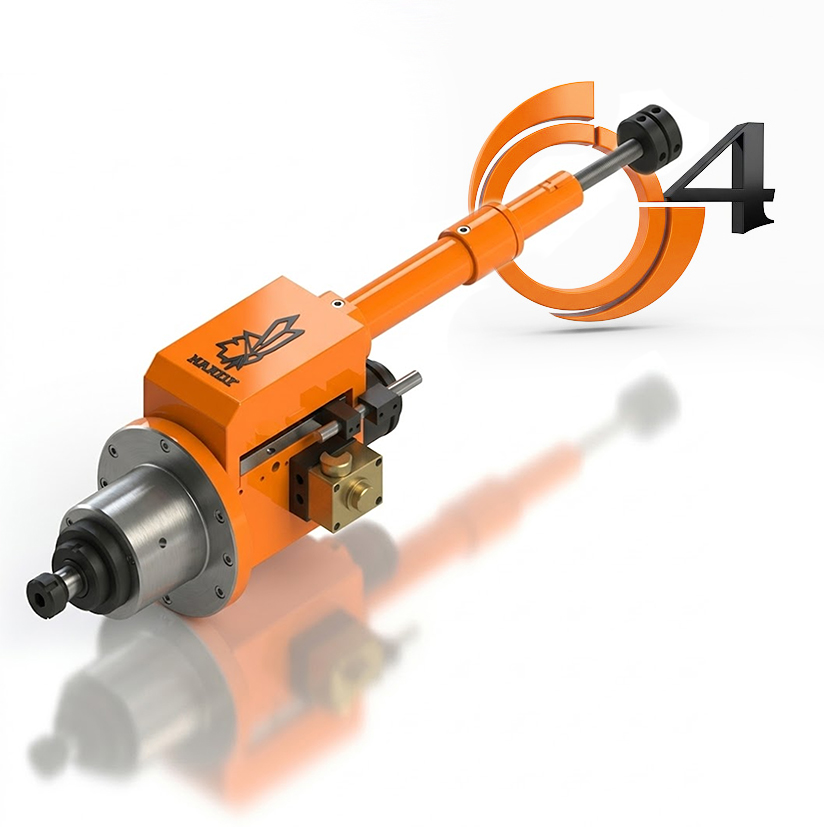

SFHD SERIES Flange Drilling Heads are designed with hydraulic cylinder feed. The precision of the spindle tip is strictly less than 0.003mm and the maximum drilling capacity is up to 25.00mm (S45C).
This unit allows you to carry out all types of Machining Processes such as Drilling, Threading, Chamfering, Reaming and Countersinking.
The maximum drilling capacity according to its capacities is Ø16mm., Ø25mm., Ø35mm., Ø35mm. & Ø50mm., with Maximum Strokes of 100.00mm, 120.00 mm & 150.00 mm. And Maximum Working Power of 1 H.P., 2 H.P., 3 H.P. & 5 H.P.
It is possible to make adjustments to both the Maximum Stroke and the Maximum Power of the equipment by request of the user.

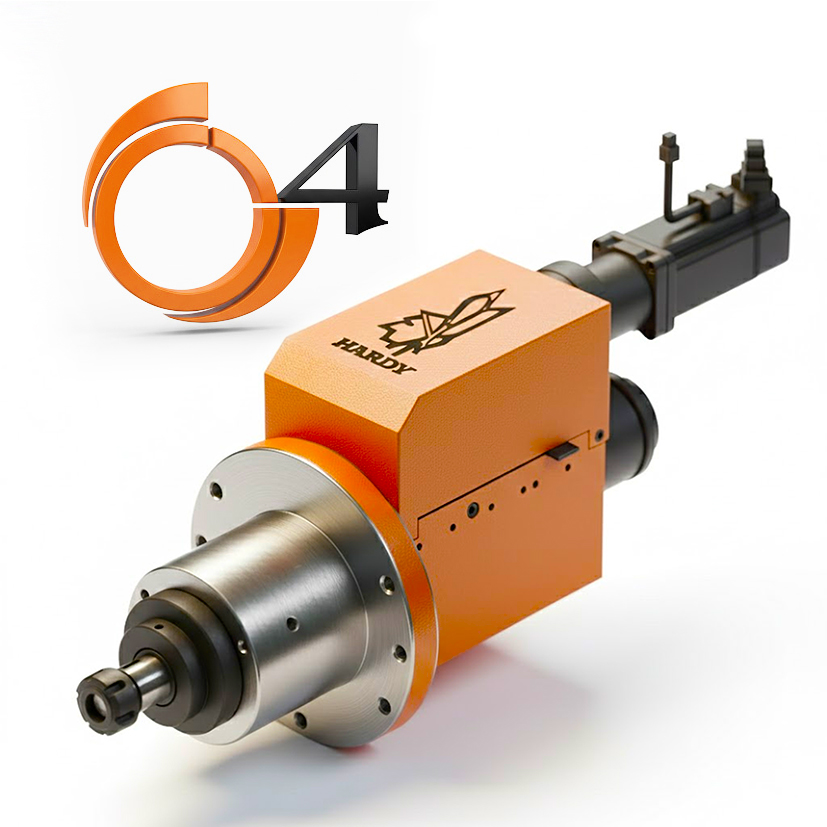

SERVO HEAD FOR FLANGE TYPE TAPPING/DRILLING
SFSD SERIES Flange Type Servo Tapping/Drilling Heads are designed with servo feeding with C5 grade ball screw and servo motor for rotary trunnion machines.
The precision of the spindle tip is strictly less than 0.003mm.
This unit allows you to carry out all types of Machining Processes such as Drilling, Threading, Chamfering, Reaming and Countersinking.
The maximum drilling capacity according to its capacities are Ø16 mm., Ø25 mm., Ø35 mm., Ø35 mm. & Ø50mm., with Maximum Strokes of 100.mm, 120.00 mm & 150.00 mm. And Maximum Working Power of 1 H.P., 2 H.P., 3 H.P. & 5 H.P.
It is possible to make adjustments to both the Maximum Stroke and the Maximum Power of the equipment by request of the user.

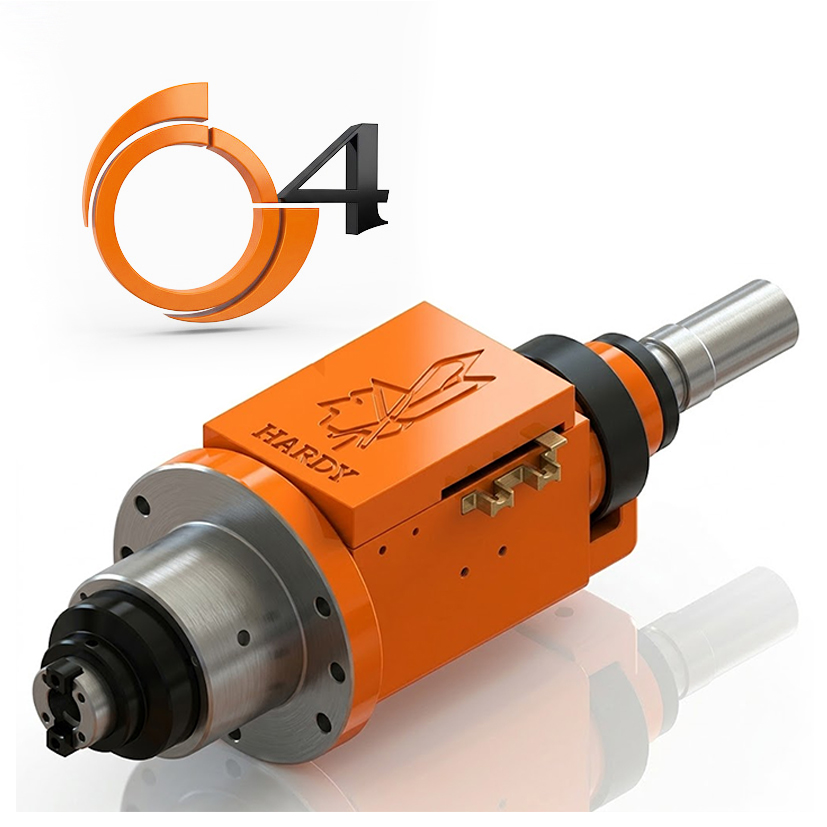

TAPPING HEAD WITH SCREW TRANSMISSION FLANGE TYPE PATTERN
The SFST SERIES FLANGE TYPE SPINDLE HEADS with Lead Screw Transmission is designed with lead screw transmission, automatic thread cutting support and floating male chuck.
The maximum threading capacity according to their capacities are M12, M30, M35, M45 & M50, with Maximum Strokes of 50.00 mm, 65.00 mm, 85.00 mm & 90.00 mm. And Maximum Working Power of ½ H.P., 1 H.P. & 2 H.P.
It is possible to make adjustments to both the Maximum Stroke and the Maximum Power of the equipment by request of the user.
Likewise, the Pitch of the Lead Screw must be determined by the user.

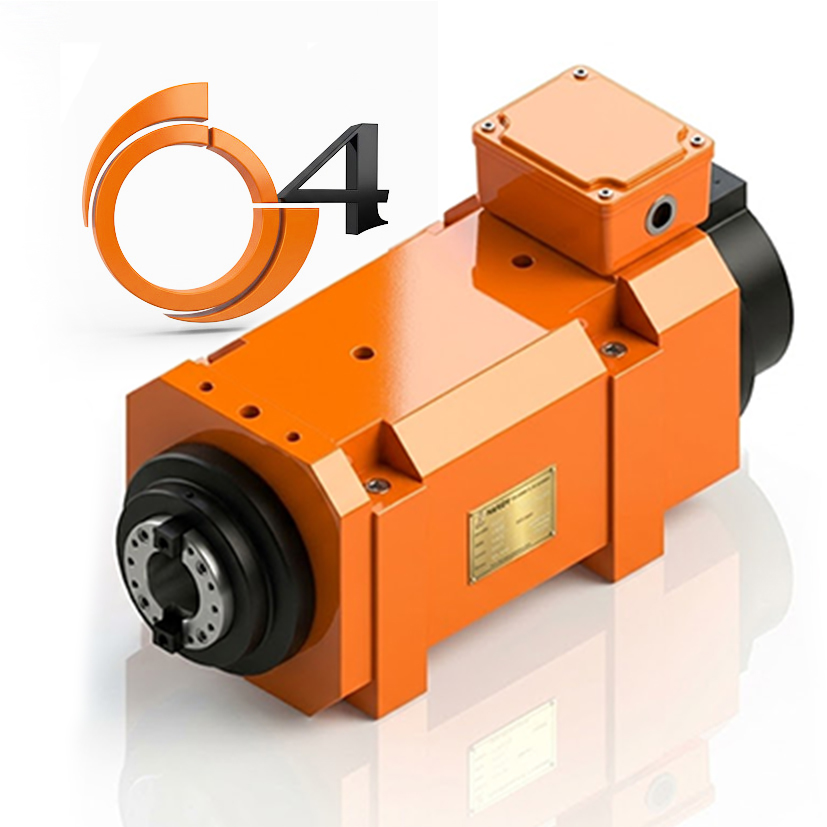

Compact Servo Heads for Milling and Boring, with Oil Cooling System for Continuous Work.
- MAXIMUM POWER
- 2, 3 & 5 H.P.
- MAXIMUM SPEED (Standard Series)
- 1500, 2000 & 2500 r.p.m.
- MAXIMUM SPEED (H Series)
- 2500, 6000, & 8000 r.p.m.
- NOZZLE TYPES
- NT-30, NT-40 & NT-50

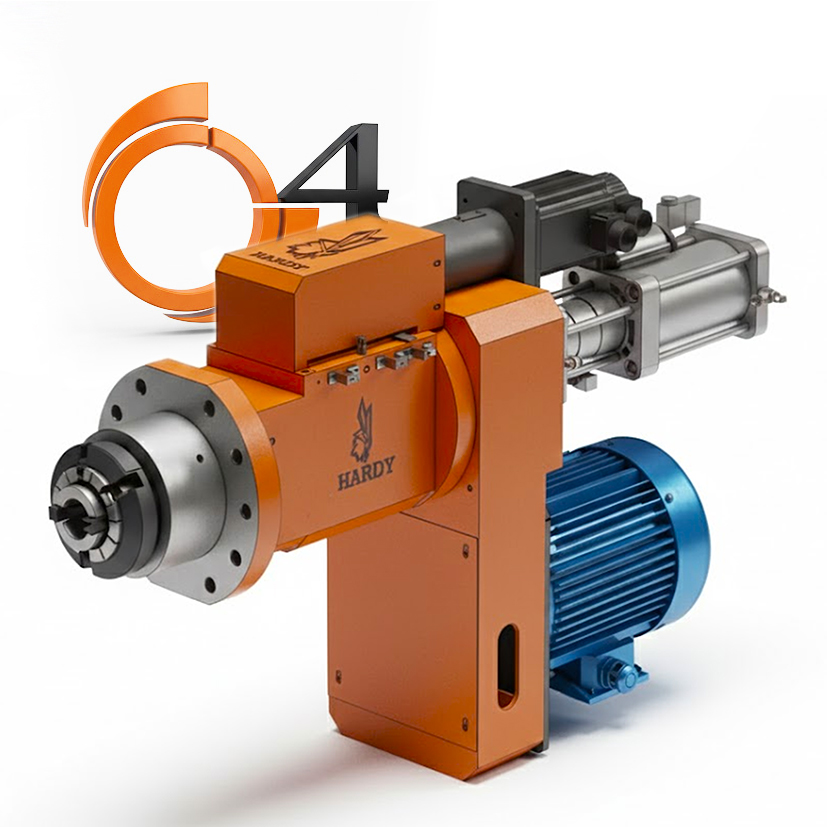

SSFC SERIES
SERVO HEAD FOR TAPPING / DRILLING WITH FLANGE TYPE AUTOMATIC TOOL CHANGE SYSTEM
- SSFC11-120M
- MAXIMUM DRILLING CAPACITY:
- Ø35 mm
- MAXIMUM STRIKE:
- 120.00 mm
- MAXIMUM SPEED:
- 2,200 r.p.m.
- MAXIMUM POWER
- 3 H.p. x 4P (2.2kW)***
- MAXIMUM DRILLING CAPACITY:
*** It can be configured with a 5 H.P. motor. x 4P (3.7Kw.) At Customer’s Request.
- SSFC11H-120M
- MAXIMUM DRILLING CAPACITY:
- Ø35 mm
- MAXIMUM STRIKE:
- 120.00 mm
- MAXIMUM SPEED:
- 6,000 r.p.m.
- MAXIMUM POWER
- 3 H.p. x 4P (2.2kW)***
- MAXIMUM DRILLING CAPACITY:
*** It can be configured with a 5 H.P. motor. x 4P (3.7Kw.) At Customer’s Request.

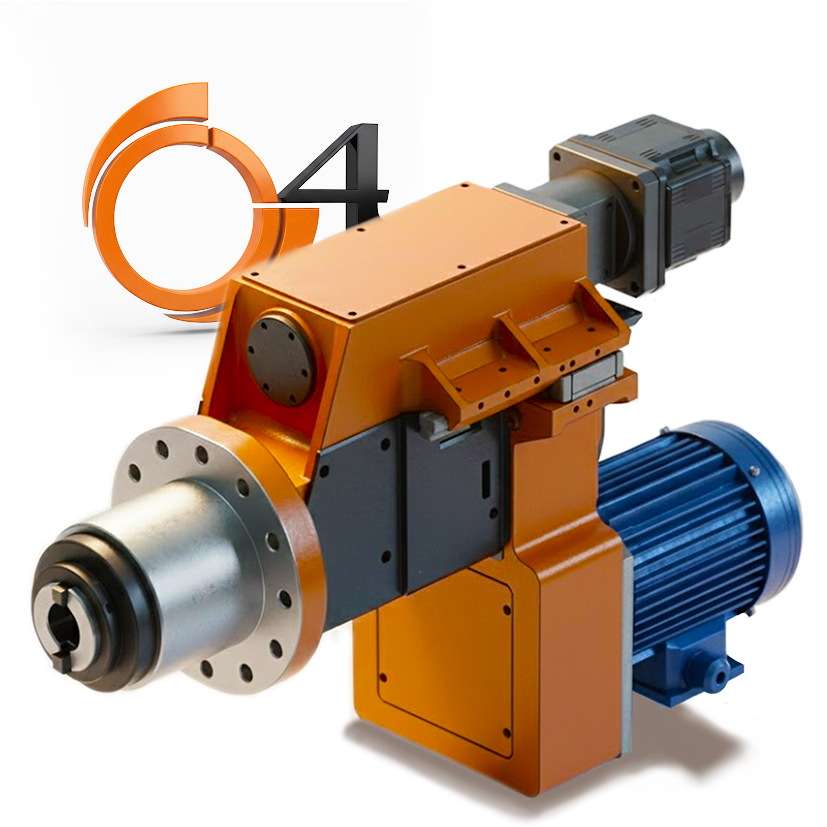

SSFDL SERIES
SERVO TAPPING/DRILLING SPINDLE HEAD WITH LINEAR RAILS FLANGE TYPE
- SSFDL11-120MK
- MAXIMUM TAPPING CAPACITY:
- M35
- MAXIMUM DRILLING CAPACITY:
- Ø35 mm
- MAXIMUM POWER
- 3 H.P.
- MAXIMUM SPINDLE SPEED
- 1,800 r.p.m.
- MAXIMUM SPINDLE STROKE
- 120.00 mm
- MAXIMUM TAPPING CAPACITY:
- SSFDL11H-120MK
- MAXIMUM TAPPING CAPACITY:
- M35
- MAXIMUM DRILLING CAPACITY:
- Ø35 mm
- MAXIMUM POWER
- 3 H.P.
- MAXIMUM SPINDLE SPEED
- 4,000 r.p.m.
- MAXIMUM SPINDLE STROKE
- 120.00 mm
- MAXIMUM TAPPING CAPACITY:

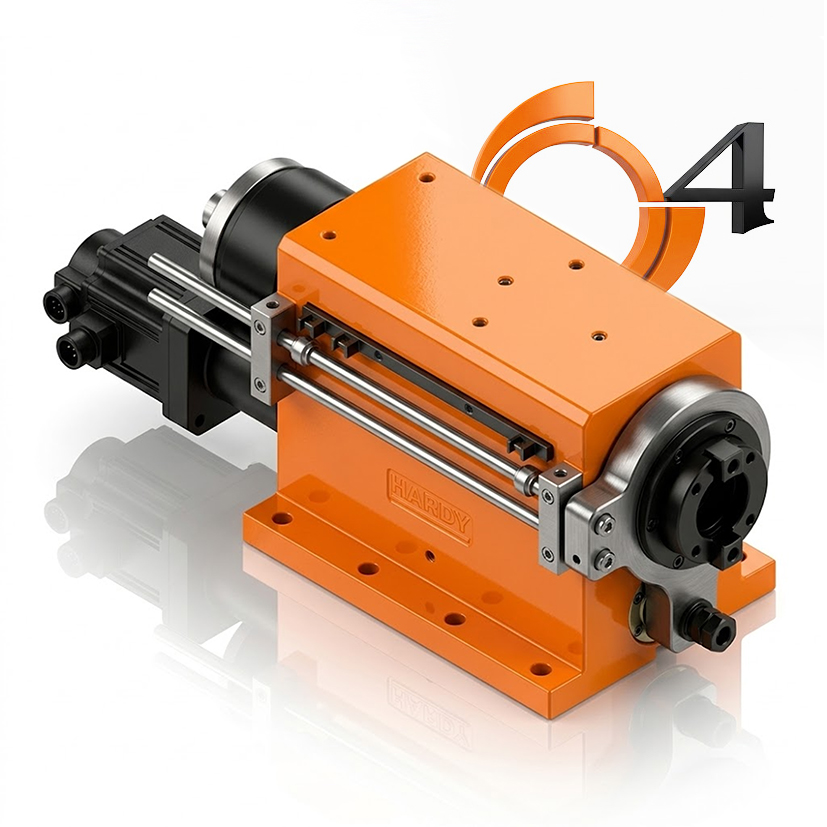

SERVO HEADS FOR TAPPING/DRILLING
SSD SERIES SERVO SPINDLE HEAD FOR TAPPING/DRILLING are designed with servo feeding by C5 grade ball screw and servo motor, the precision of spindle tip is strictly less than 0.003mm.
The Maximum Drilling Capacity of the Servo Heads are Ø6mm @10,000r.p.m., Ø13mm @5,000r.p.m., Ø16mm @3,500r.p.m.~@10,000r.p.m., Ø25mm @3,000r.p.m.~@8,000r.p.m., Ø35mm @2,000r.p.m.~@6,000r.p.m. & Ø50 @1,600 r.p.m.~@4,000 r.p.m. (S45C).
The SSD SERIES CNC SERVO HEADS allow you to perform all types of machining applications such as drilling, threading, chamfering, reaming and countersinking.

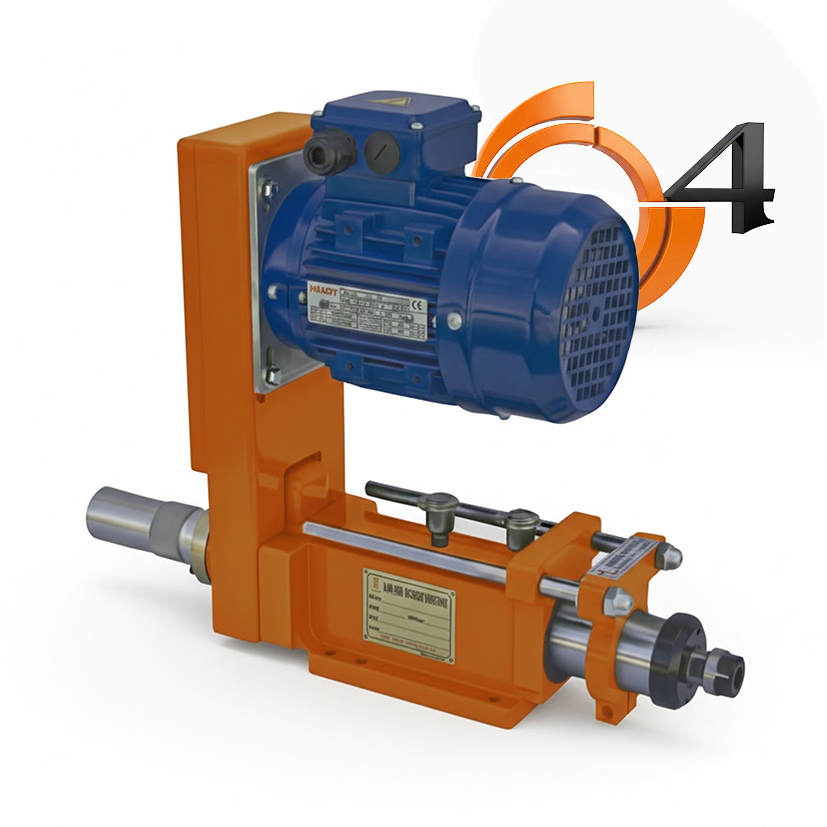

ST SERIES TAPPING SPINDLE HEADS heads are designed with lead gauge screw drive, automatic thread cutting bracket and floating male chuck.
The maximum threading capacity according to their capacities are M6, M12, M30 & M45, with Maximum Strokes of 50.00 mm, 65.00 mm, 85.00 mm & 90.00 mm. And Maximum Working Power of ½ H.P., 1 H.P. & 2 H.P.
It is possible to make adjustments to both the Maximum Stroke and the Maximum Power of the equipment by request of the user.
Likewise, the LEAD SCREW PACE DRIVE must be requested by the user.
