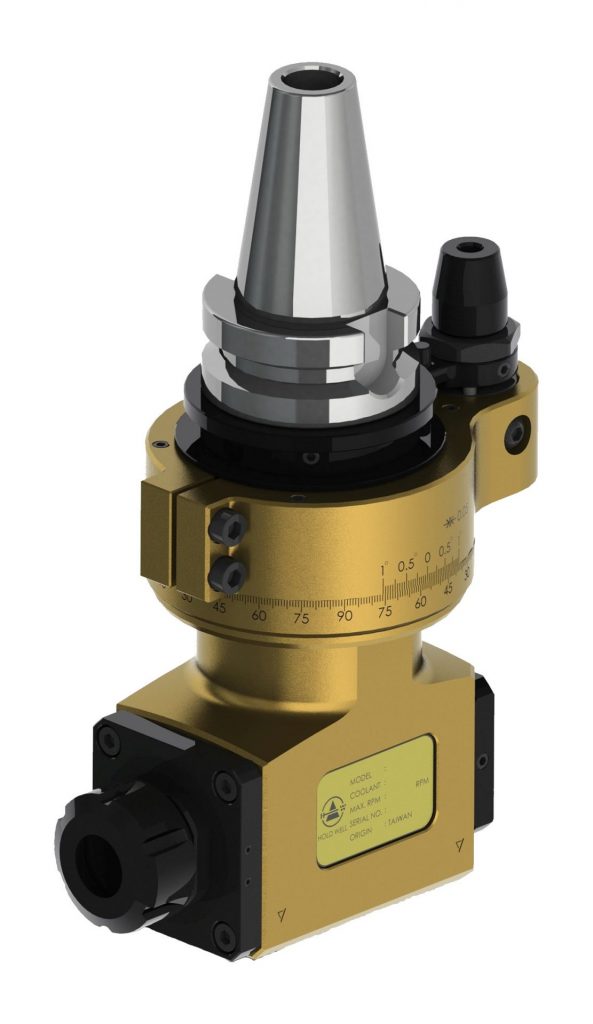

BT40-ER16 Lightweight Angle Head (AHL Type)Earthquake: 0.002 mm
Material: Alloy steel
RPM: Max. 8,000 RPM
Tightening torque: Max. 12 Nm
Drilling: Max. 10 mm
Tapping: Max. M8
Gear ratio: 1:1
Standard accessories: M-type wrench, pin wrench, ER nut
Output rotation: Reverse of input rotation
CHARACTERISTICS
Its compact and lightweight design is ideal for drilling, milling, and tapping applications.
Automatic tool change. Increases productivity.
Integrated positioning pin: The cutting direction can be adjusted from 0 to 360 degrees. It allows for greater clamping torque, and the cutting direction is maintained during machining.
DESCRIPTION

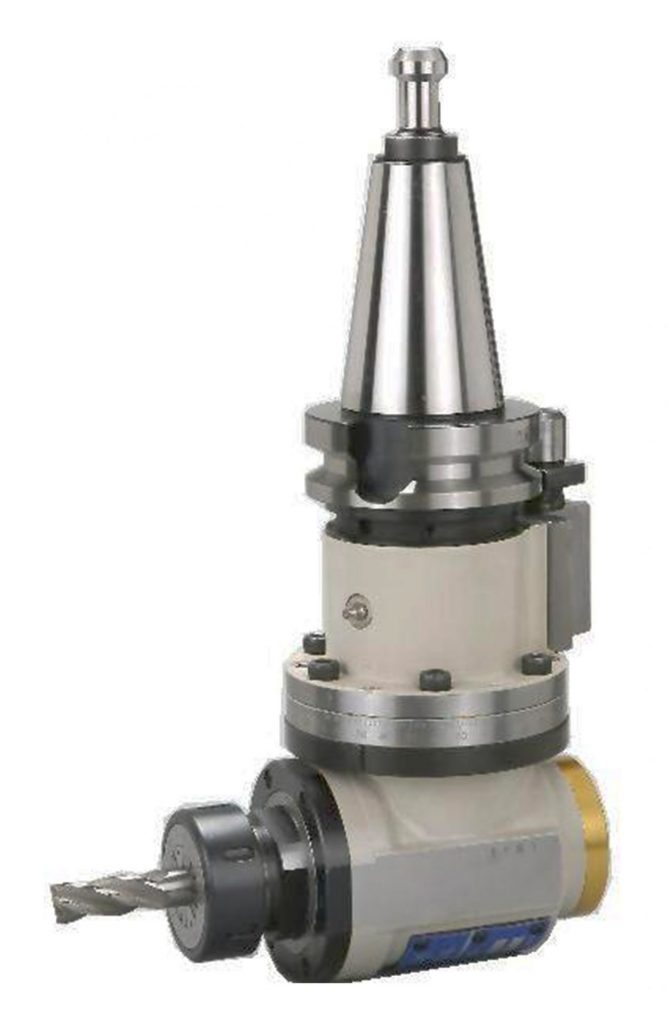

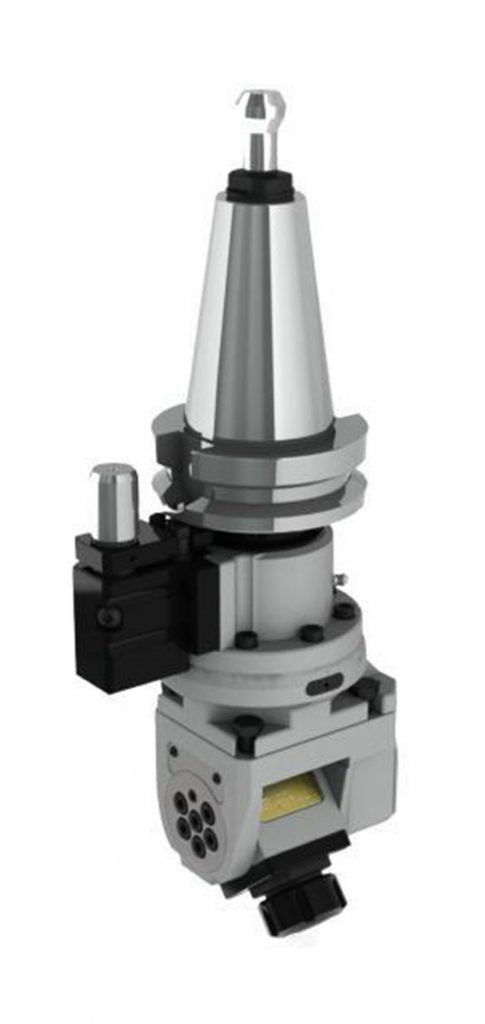

Compact BT40-ER20 90° Angle Head (AHD Type)
Earthquake: 0.002 mm
Material: Ductile iron
RPM: Max. 4,000 RPM
Tightening torque: Max. 25 Nm
Drilling: Max. 12 mm
Tapping: Max. M10
Gear ratio: 1:1
Standard accessories: Hook wrench, ER wrench, ER nut
Output rotation: Reverse of input rotation
CHARACTERISTICS
The compact body design is the best tool for internal machining applications.
DESCRIPTION

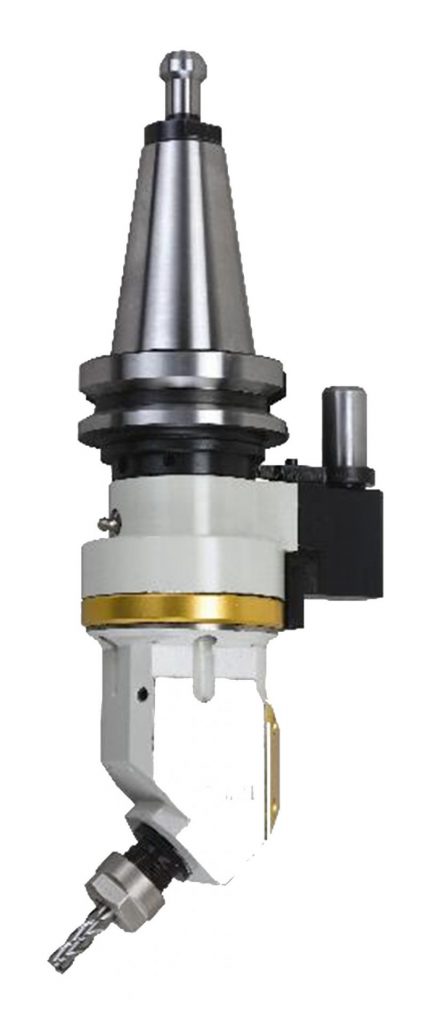

BT40-ER20 45° Angle Head (AHD Type)Earthquake: 0.002 mm
Material: Ductile iron
RPM: Max. 4,000 RPM
Tightening torque: Max. 15 Nm
Drilling: Max. 10 mm
Tapping: Max. M8
Gear ratio: 1:1
Standard accessories: Hook wrench, open-end wrench, ER nut
Rotation de salida: Inversa a la rotación de entrada
CHARACTERISTICS
The 45-degree design ensures drilling, milling and processing of 45-degree curved surfaces.
DESCRIPTION

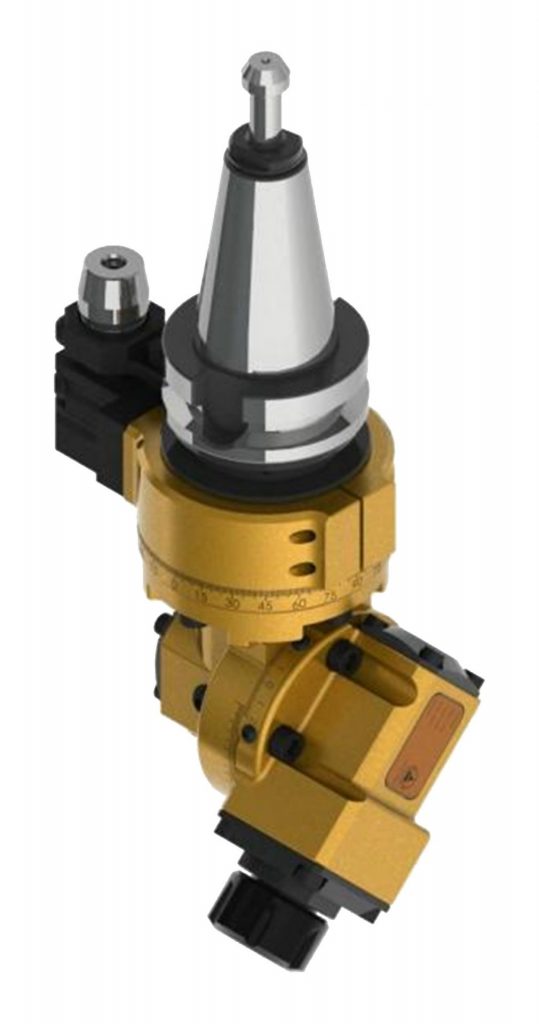

BT40-ER20 Lightweight Angle Head – Universal (AHL Type)Earthquake: 0.002 mm
Material: Alloy steel
RPM: Max. 6,000 RPM
Tightening torque: Max. 9 Nm
Drilling: Max . 10 mm
Tapping: Max. M6
Gear ratio: 1:1
Standard accessories: Open-end wrench, ER wrench, ER nut
Output rotation: Same as input rotation
CHARACTERISTICS
The cutting angle can be adjusted from 0° to ±120° for a variety of applications.
Its compact design provides greater strength, oil and dust resistance, and longer life.
Automatic tool change. Increases productivity.
Integrated positioning pin: The cutting direction can be adjusted from 0 to 360 degrees. It allows for greater clamping torque, and the cutting direction is maintained during machining.
DESCRIPTION

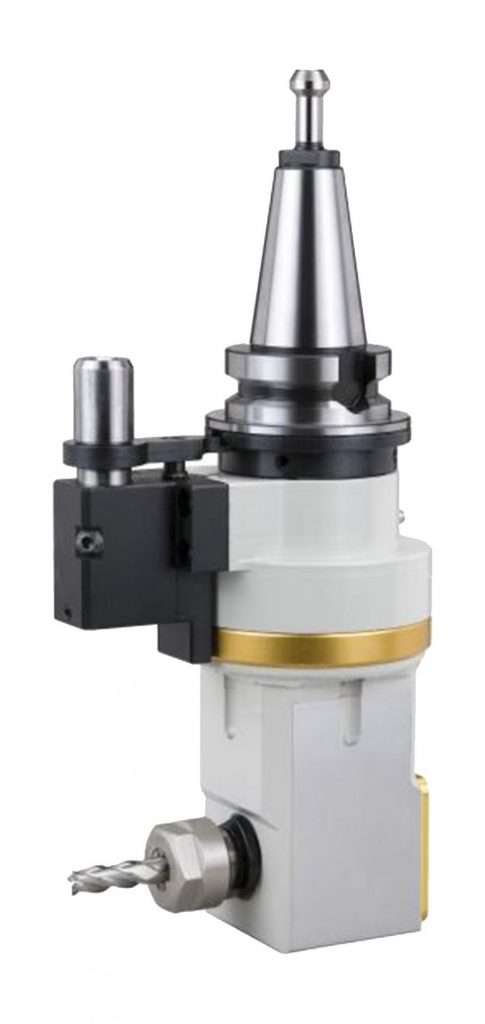

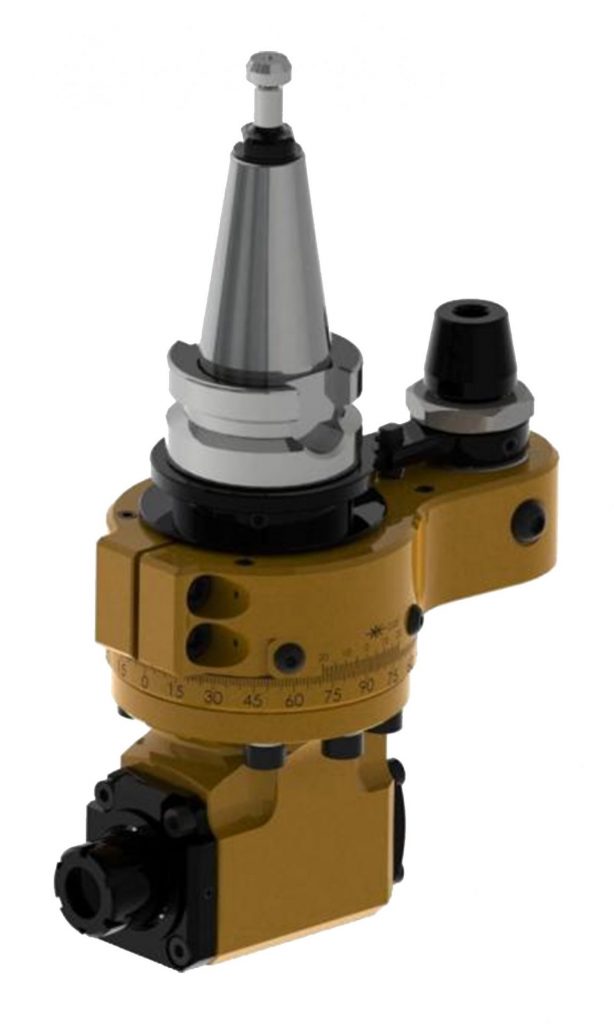

BT40-ER25 90° Angle Head (AHL Type)Earthquake: 0.002 mm
Material: Aerospace Aluminum Alloy / Ductile Iron / Alloy Steel
RPM: Max. 6,000 RPM
Tightening Torque: Max. 30 Nm
Drilling: Max. 16 mm
Tapping: Max. M12
Gear Ratio: 1:1
Standard Accessories: Open-end Wrench, ER Wrench, ER Nut
Output Rotation: Reverse of Input Rotation
CHARACTERISTICS
Its compact and lightweight design is ideal for drilling, milling, and tapping applications.
Automatic tool change. Increases productivity.
Integrated positioning pin: The cutting direction can be adjusted from 0 to 360 degrees. It allows for greater clamping torque, and the cutting direction is maintained during machining.
DESCRIPTION

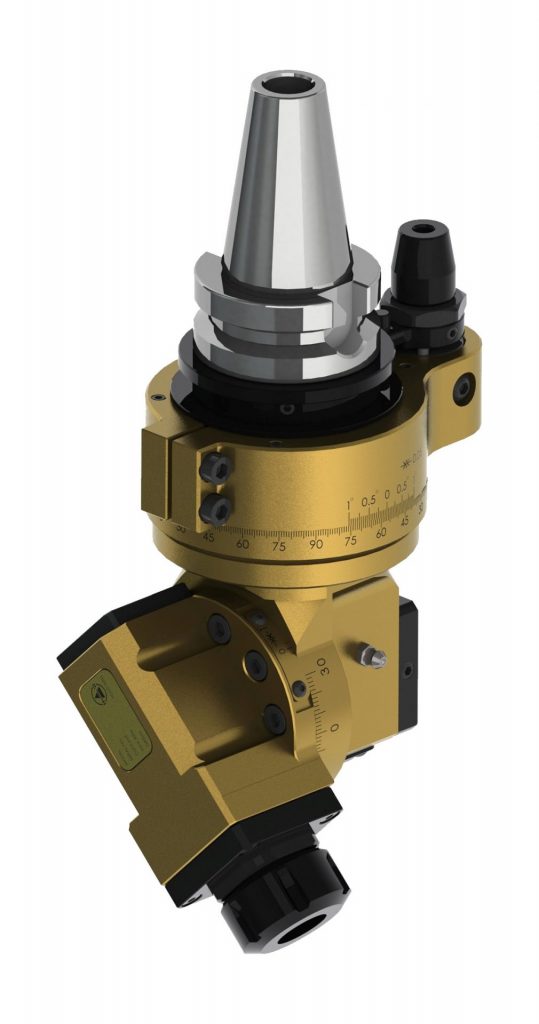

BT40-ER25 Universal Angle Head (AHL Type)Earthquake: 0.002 mm
Material: Aerospace Aluminum Alloy / Ductile Iron / Alloy Steel
RPM: Max. 6,000 RPM
Tightening Torque: Max. 25 Nm
Drilling: Max. 14 mm
Tapping: Max. M10
Gear Ratio: 1:1
Standard Accessories: Open-end Wrench, ER Wrench, ER Nut
Output Rotation: Reverse of Input Rotation
CHARACTERISTICS
The cutting angle can be adjusted from 0° to ±120° for a variety of applications.
Its compact design provides greater strength, oil and dust resistance, and longer life.
Automatic tool change. Increases productivity.
Integrated positioning pin: The cutting direction can be adjusted from 0 to 360 degrees. It allows for greater clamping torque, and the cutting direction is maintained during machining.
DESCRIPTION

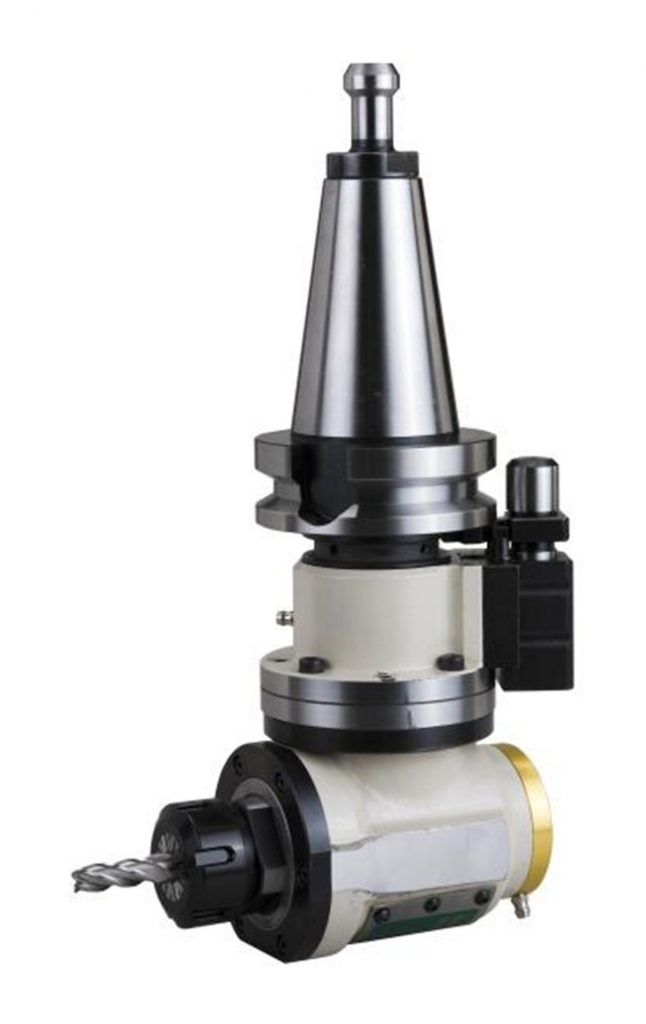

BT40-ER32 90° Angle Head (AHA Type)Earthquake: 0.002 mm
Material: Ductile iron
RPM: Max. 6,000 RPM
Tightening torque: Max. 50 Nm
Drilling: Max. 18 mm
Tapping: Max. M14
Gear ratio: 1 : 0.81
Standard accessories: Hook wrench, ER wrench, ER nut
Output rotation: Reverse of input rotation
CHARACTERISTICS
The body is made of ductile iron.
High-strength steel; stable machining.
Wide selection of tool shanks. The ER32 , ER40 , and FA25.4 collet heads are designed for a variety of applications.
Suitable for light and medium cutting.
DESCRIPTION
BT40-ER32 Universal Angle Head (AHG Type)Earthquake: 0.002 mm
Material: Alloy steel and ductile iron
RPM: Max. 4000 RPM
Tightening torque: Max. 20 Nm
Drilling: Max. 14 mm
Tapping: Max. M10
Gear ratio: 1:1
Standard accessories: Open-end wrench, ER wrench, ER nut
Rotation salida: Inversa a la rotación de entrada
CHARACTERISTICS
The cutting angle can be adjusted from 0 to ±90 degrees for a variety of applications.
Its compact design provides increased strength, oil and dust resistance, and long life.
DESCRIPTION

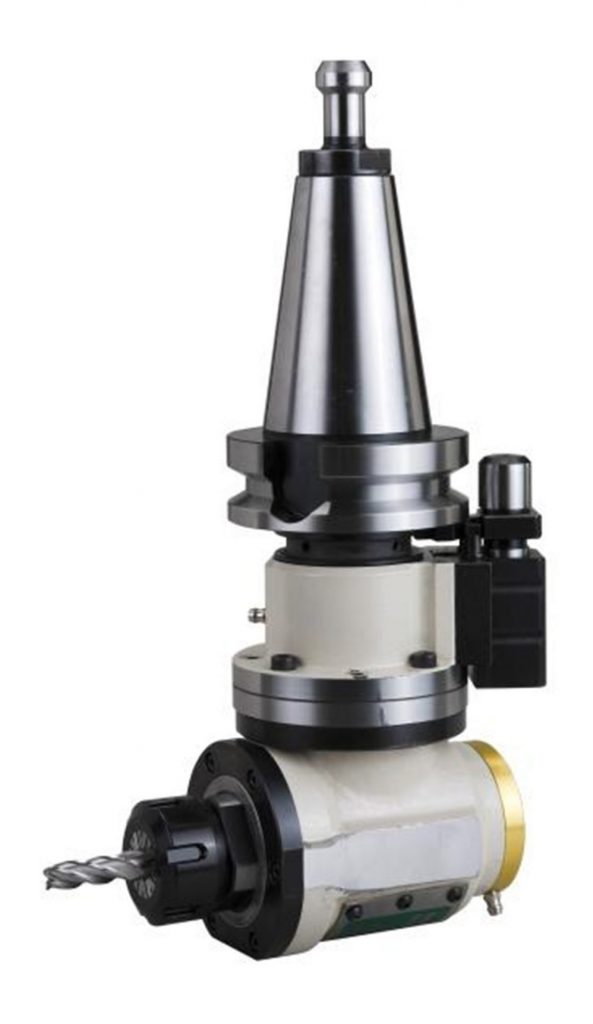

BT40-ER40 90° Angle Head (AHA Type)Earthquake: 0.002 mm
Material: Ductile iron
RPM: Max. 6000 RPM
Tightening torque: Max. 50 Nm
Drilling: Max. 18 mm
Tapping: Max. M14
Gear ratio: 1:0.81
Standard accessories: Hook wrench, ER wrench, ER nut
Output rotation: Reverse of input rotation
CHARACTERISTICS
The body is made of ductile iron.
High-strength steel; stable machining.
Wide selection of tool shanks. The ER32 , ER40 , and FA25.4 collet heads are designed for a variety of applications.
Suitable for light and medium cutting.
DESCRIPTION
BT40-ER40 90° Angle Head (AHB Type)Earthquake: 0.002 mm
Material: Ductile iron
RPM: Max. 6000 RPM
Tightening torque: Max. 70 Nm
Drilling: Max. 20 mm
Tapping: Max. M16
Gear ratio: 1:1
Standard accessories: Hook wrench, ER wrench, ER nut
Output rotation: Reverse of input rotation
CHARACTERISTICS
The body is made of ductile cast iron.
High-strength steel; stable machining.
DESCRIPTION

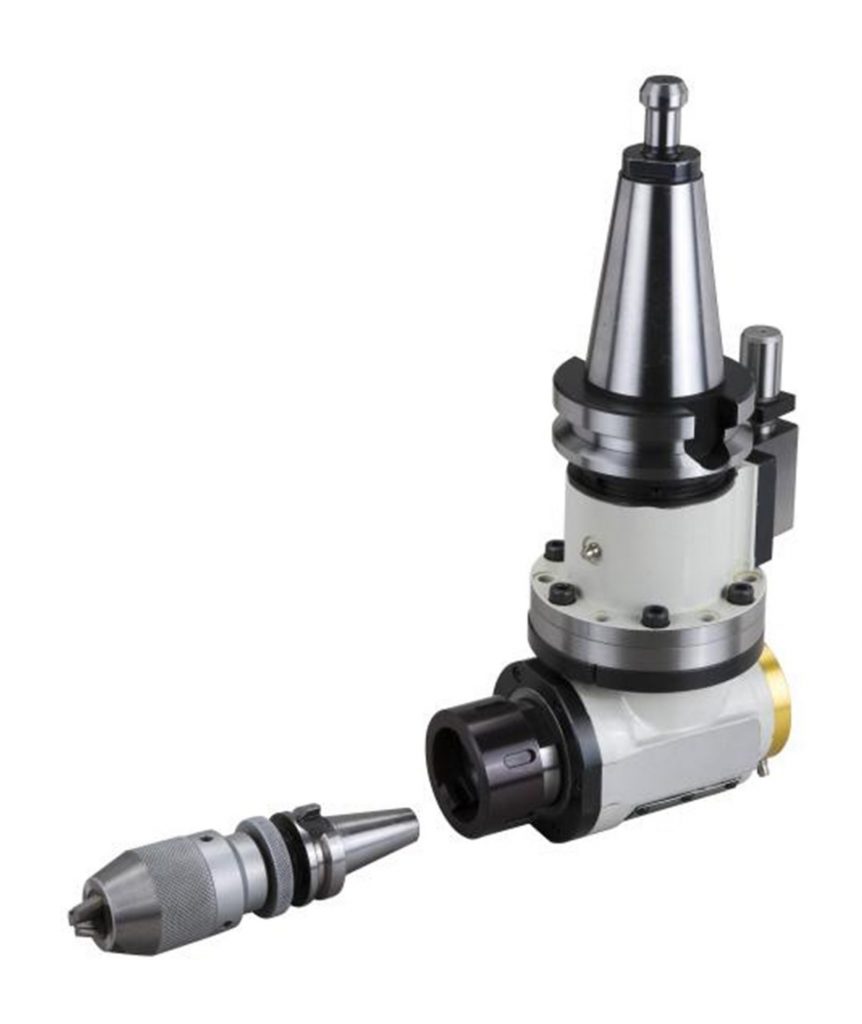

90° Angle Head BT40-BT30 (AHB Type)Earthquake: 0.002 mm
Material: Ductile iron
RPM: Max. 6000 RPM
Tightening torque: Max. 70 Nm
Drilling: Max. 20 mm
Tapping: Max. M16
Gear ratio: 1:1
Standard accessories: Hook wrench, open-end wrench, BT nut
Output rotation: Reverse of input rotation
CHARACTERISTICS
The body is made of ductile iron.
High-strength steel; stable machining.
The BT30 output interface ensures a wide range of applications with various BT30 tool holders.
