PRODUCT CHARACTERISTICS
• Bore : ø25~ø63 mm
• Pmax : 500 Kg/cm²
• The series of swing clamp cylinder is ideal for workpiece clamping which requires a sufficient space for convenient workpiece loading and unloading and high pressure clamping.
• It provides swing motion (do not clamp workpiece) and vertical hold down motion.
• The swing clamp cylinder employs Germany oil seal and imported parts. The inside surface of cylinder barrel is specially treated, featuring maximum smoothness, high performance and long service life.
• For maximum oil feeding speed, refer to specifications. Do not exceed oil feeding speed to avoid too high swing speed. In case improper swing speed occurs, it is suggested to equip with an additional oil flow control valve to reduce oil feeding speed.
• Refer to the comparison diagram between the effective clamping force and working pressure. Do not extend the swing arm length as desired.
ELEMENTS
- HPS SERIES

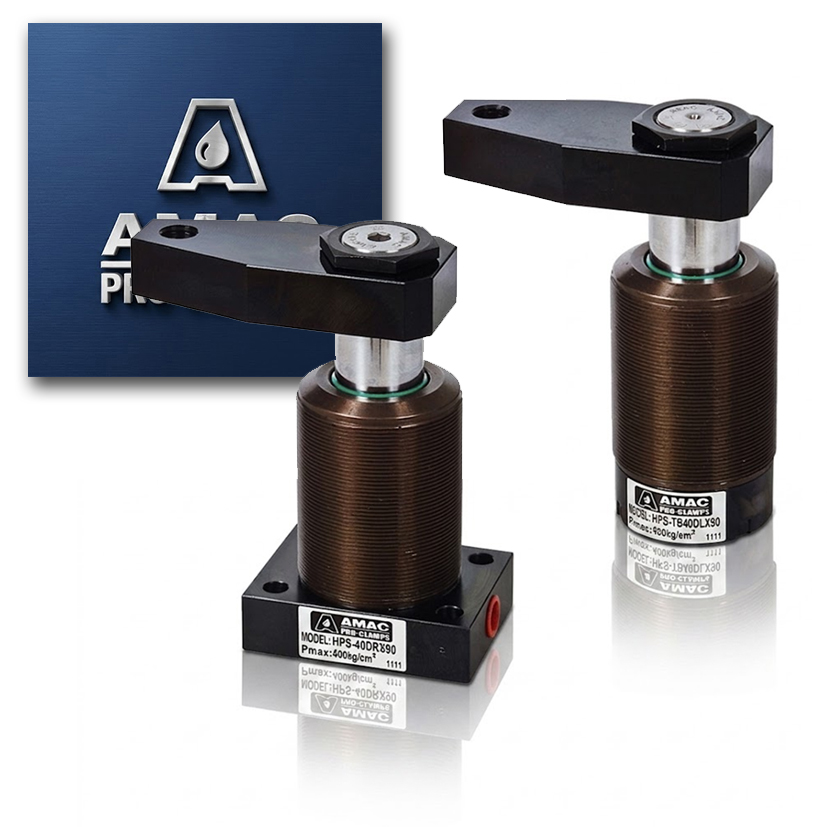

- High Pressure Hydraulic Oscillating Clamping Cylinders
- HPS-M SERIES

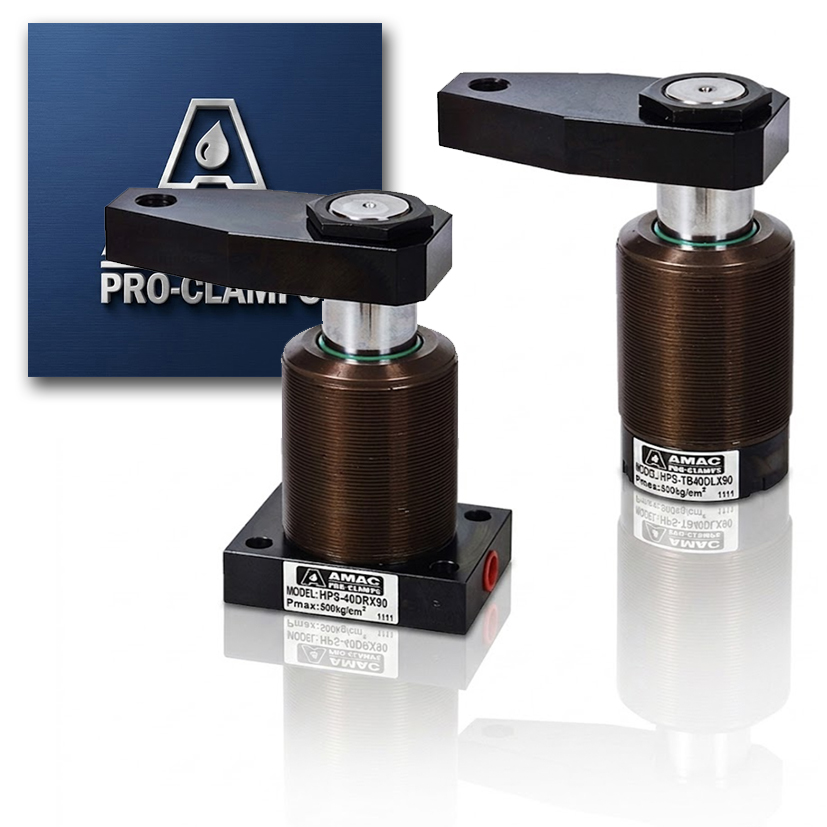

- High Pressure Hydraulic Oscillating Clamping Cylinders WITH MANIFOLD
- HPS-TB SERIES
- High Pressure Hydraulic Oscillating Clamping Cylinders WITH THREADED BODY
